Data visualization relies heavily on two-dimensional Cartesian coordinates (X and Y axes). Scatter plots, bar charts, and line graphs serve well when comparing two variables. However, when an analysis requires evaluating three interdependent variables that consistently sum to a fixed total—such as 100% of a mixture—standard Cartesian graphs fall short.
In technical diving, gas mixing, and life-support engineering, specialists rely on ternary plots, widely known as Trimix Triangles. These specialized geometric graphs depict the relative proportions of three distinct components: oxygen (O2), nitrogen (N2), and helium (He).
Mastering the mechanics of Trimixtriangles is essential for data analysts, gas blenders, and life-support technicians who must interpret complex fluid ratios, assess physiological boundaries, and turn raw compositional data into accurate visual models.

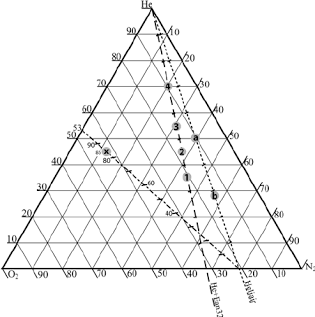

A ternary plot displaying the three-axis grid structure used for Trimix visualization. Source: ResearchGate
1. The Core Geometry: Anatomy of a Ternary Plot
A Trimix Triangle is an equilateral triangle representing a three-component system. The fundamental mathematical rule governing any point plotted inside the triangle is:
Oxygen (FO2)+Nitrogen (FN2)+Helium (FHe)=1.00 (or 100%)
Because the sum of the three variables is constrained to 100%, the system possesses only two degrees of freedom. This unique property allows a three-variable system to be mapped accurately in two-dimensional space without requiring a complex 3D surface plot.
The Components of the Triangle
To read a ternary diagram correctly, you must first identify its four visual components:
- Vertices (Corners): Each of the three apexes represents a pure, 100% concentration of a single component.
- Top Vertex: 100% Helium (He)
- Bottom-Left Vertex: 100% Oxygen (O2)
- Bottom-Right Vertex: 100% Nitrogen (N2)
- Edges (Boundaries): The three outer line segments represent binary mixtures (two-component systems where the third component is 0%).
- Bottom Base: Oxygen-Nitrogen mixtures (Nitrox blends, 0% Helium).
- Left Edge: Oxygen-Helium mixtures (Heliox blends, 0% Nitrogen).
- Right Edge: Helium-Nitrogen mixtures (0% Oxygen).
- Grid Lines: Sets of parallel lines running across the interior of the triangle at regular increments (typically 10%). Each grid line represents a constant percentage of one specific gas.
- Interior Space: Any point located inside the perimeter represents a ternary mixture (Trimix) containing non-zero percentages of all three gases.
2. Step-by-Step: How to Read a Data Point
Reading a coordinate point inside a triangular chart requires following three grid lines that intersect at a single spot. Unlike standard X-Y charts where grid lines cross at 90∘ angles, grid lines in a ternary graph cross at 60∘ angles.
Follow these steps to extract precise compositional percentages from any plotted data point:
Step 1: Read the Oxygen Percentage (FO2)
Locate the bottom-left corner (100% O2). Grid lines representing constant oxygen levels run parallel to the opposite side of the triangle (the right edge). Find the line passing through your data point and follow it down to the baseline or along the left edge to read the value.
Step 2: Read the Nitrogen Percentage (FN2)
Locate the bottom-right corner (100% N2). Grid lines for constant nitrogen run parallel to the left edge (the Heliox line). Trace the grid line intersecting your point down toward the bottom axis to determine the nitrogen fraction.
Step 3: Read the Helium Percentage (FHe)
Locate the top apex (100% He). Grid lines for constant helium run horizontally, parallel to the bottom baseline. Trace the horizontal line intersecting your point to the left or right outer scale to read the helium concentration.
Verification Step
Always verify your readings with basic arithmetic:
FO2+FN2+FHe=100%
If a data point reads 18% Oxygen, 37% Nitrogen, and 45% Helium (18+37+45=100), the coordinate is accurate and represents standard Trimix 18/45.
3. Interpreting Physiological Zones and Isopleths
In technical data visualization, a Trimix Triangle does more than map raw coordinates; it overlays physiological and operational boundaries directly onto the dataset. These boundaries appear as lines, vectors, and shaded regions.
100% Helium (Apex)
/
/
/
/
/ Safe <-- Optimal Breathing Window
/ Trimix
/ Zone
/______________
100% Oxygen 100% Nitrogen
(Bottom-Left) (Bottom-Right)
Maximum Operating Depth (MOD) Isopleths
An isopleth is a contour line along which a specific variable remains constant. When visualizing gas mixtures for a target depth (e.g., 200 feet / 61 meters), a line is drawn representing the maximum allowable oxygen concentration to prevent CNS oxygen toxicity (ppO2≤1.4 bar).
- Mixtures to the left of the MOD line are safe from oxygen toxicity at that depth.
- Mixtures to the right exceed safe partial pressure thresholds.
Equivalent Narcotic Depth (END) Boundaries
Nitrogen causes narcosis under pressure. Helium is non-narcotic at recreational and technical diving depths. Lines of constant Equivalent Narcotic Depth cross the triangle diagonally. Moving vertically toward the 100% Helium apex replaces nitrogen with helium, pushing the data point into a lower-narcosis region.
Hypoxic vs. Normoxic Lines
Breathing gas containing less than 16% to 18% oxygen cannot sustain human consciousness at surface atmospheric pressure (1.0 bar). A horizontal line drawn at the 18% oxygen mark clearly separates normoxic Trimix (safe to breathe at the surface) from hypoxic Trimix (which requires a shallow travel gas during descent).
4. Comparing Standard Gas Mixtures Visualized on a Ternary Plot
Mapping common technical breathing blends onto a ternary matrix demonstrates how helium replacement alters the physical parameters of the gas.
| Gas Blend | O2 % | He % | N2 % | Primary Visualization Region | Operational Focus |
|---|---|---|---|---|---|
| Air | 21% | 0% | 79% | Bottom edge (baseline) | Shallow recreational use |
| Nitrox 32 | 32% | 0% | 68% | Bottom edge, left shift | Extended bottom time (shallow) |
| Trimix 21/35 | 21% | 35% | 44% | Lower-center interior | Moderate depth (100–160 ft) |
| Trimix 18/45 | 18% | 45% | 37% | Mid-interior, elevated He | Deep normoxic (160–200 ft) |
| Trimix 10/70 | 10% | 70% | 20% | Upper interior (near apex) | Deep hypoxic (>240 ft) |
5. Best Practices for Creating Clear Trimix Visualizations
When designing ternary data visualizations for reports, digital dashboards, or gas blending software, clarity is crucial to prevent misinterpretation.
- Maintain Consistent Axis Orientation: Standardize your ternary plots so that Oxygen is always on the bottom-left, Nitrogen on the bottom-right, and Helium at the top vertex. Switching vertices between charts causes severe confusion for technical users.
- Incorporate Directional Grid Arrows: Place small tick marks or directional arrows along the outer axes showing which direction values increase. Because lines run diagonally, visual cues guide the viewer’s eyes along the correct axis.
- Color-Code Safety Zones: Use green shaded polygons to represent the “breathable window” for a given target depth. Overlay red cross-hatching across hypoxic or hyperoxic regions.
- Plot Trajectories for Blending Sequences: When illustrating gas blending workflows (adding pure Helium first, then Oxygen, then air top-off), plot vectors showing the sequential movement of the cylinder’s gas state across the triangle.
Conclusion: Turning Complex Ratios into Direct Insights
Ternary diagrams transform three-variable gas equations into clean, intuitive graphics. By understanding the geometric orientation of the axes, tracing 60∘ grid intersections, and evaluating physiological boundaries like MOD and END, data analysts and life-support specialists can make swift, safety-critical decisions.
Whether you are auditing gas blending logs or programming interactive diving software, mastering the Trimix Triangle provides the mathematical and visual framework needed to analyze multi-component system data with complete accuracy.
